SONA

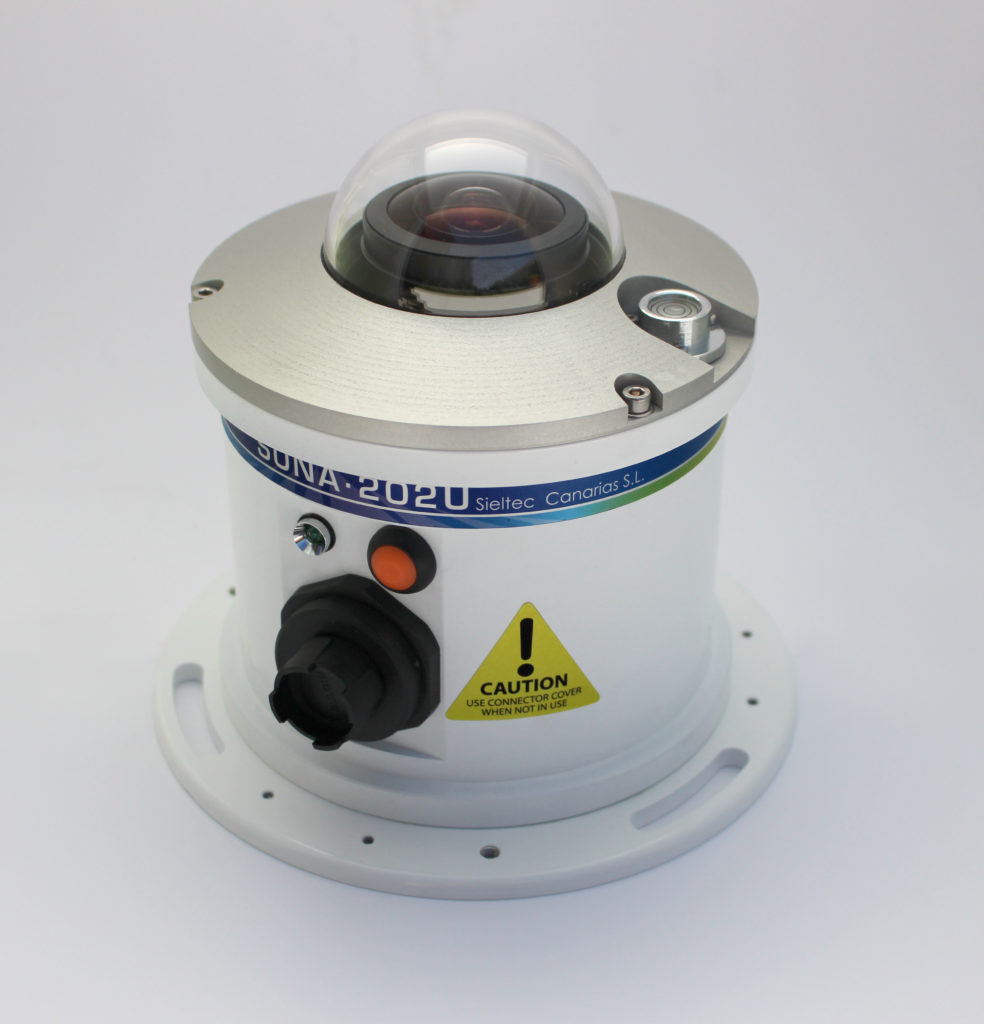

SONA allows capturing, classifying and processing all-sky images, covering 180°+ field of view. Its robust design with compact dimensions, a complete new embedded system and new internal sensors for different applications provides high reliability in harsh environmental conditions.

Its robust design, with a totally complete new external case made of highly durable materials and their new internal sensors for daylight or night applications, allows to reach an accurate output level in cloud observation and analysis.

The system captures HDR images of the entire sky. After the caption, the images are processed as well as the percentage of cloud coverage apart from other additional data.

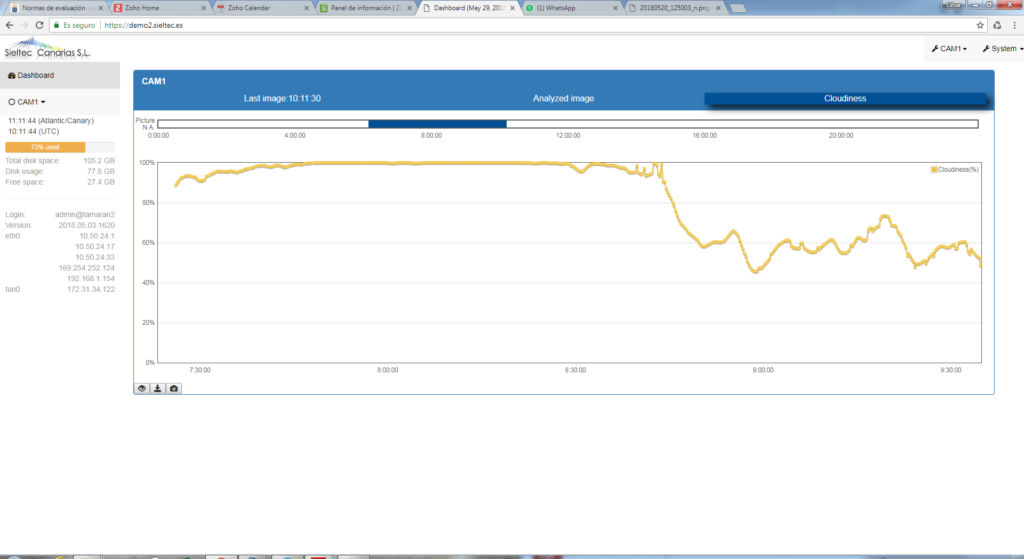

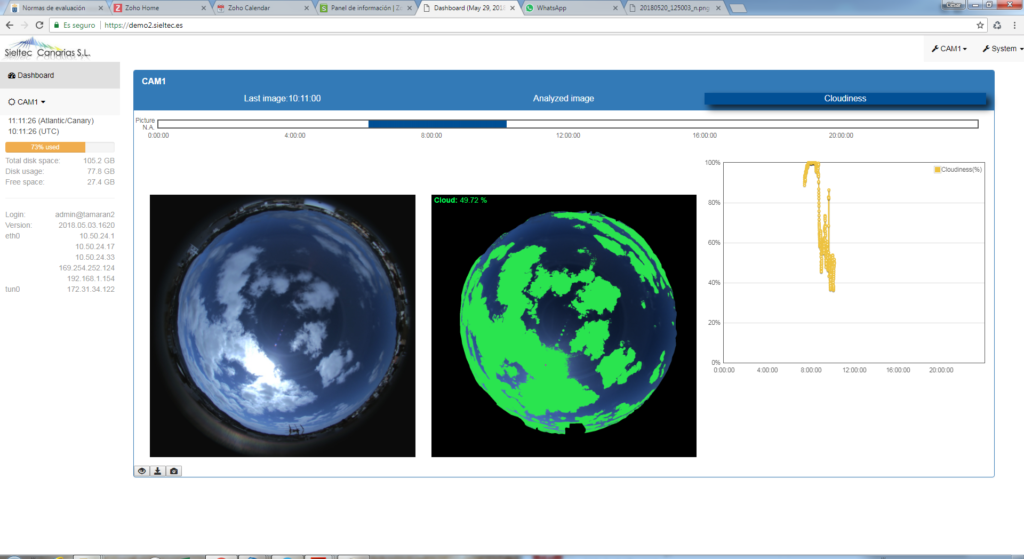

The new web interface allows connection to the system from all over your network or from outside.

Easy integration: folder based database, .csv/.json file format, link to last picture, etc… for immediate connection to your dashboard or external web to data sharing.

SONA can be customized on-demand depending on the type of application for its final deployment such as, cloud reporting in airports, cloud nowcasting which can be combined with satellite images for PV plants, CSP and CPV, sky watching in astronomy, cloud observation for tourism industry, etc.





















Specifications:

Model

SONA202U

SONA502U
Sensor Global Shutter CMOS 2.3MP high speed Global  shutter CMOS 5MP high speed
Use Daytime and nighttime (only capture at night) Daytime and nighttime (only capture at night)
FOV >180º (Fisheye, low distortion, near to lineal)
Image capture rate <5 sec (15 sec as standar)
Image capture type RAW
Output file  PNG, JPG, GIF
Output data
  • Image
  • % of clodiness
  • Sun position
  • high presence of AOD
  • Sun blocked yes/no
  • Sensor temperature
  • Data from external sensors (Delta-T SPN1 , EKO MS-80/60/40-M)
Software
  • Capture
  • Processing
  • Data grpahs
  • Database
  • Data export
  • Backup FTP
  • VPN access
  • Link to last picture
  • User defined time zone
Comms From camera to PC: Gigabit PoE LAN

From PC to Local networkl: Gigabit LAN
Power supply Input: 90 – 240V (**)
Output: 24V, 60W PoE Pasivo (camera) / 19V, 40W (PC)
IP rating >IP67 (camera)

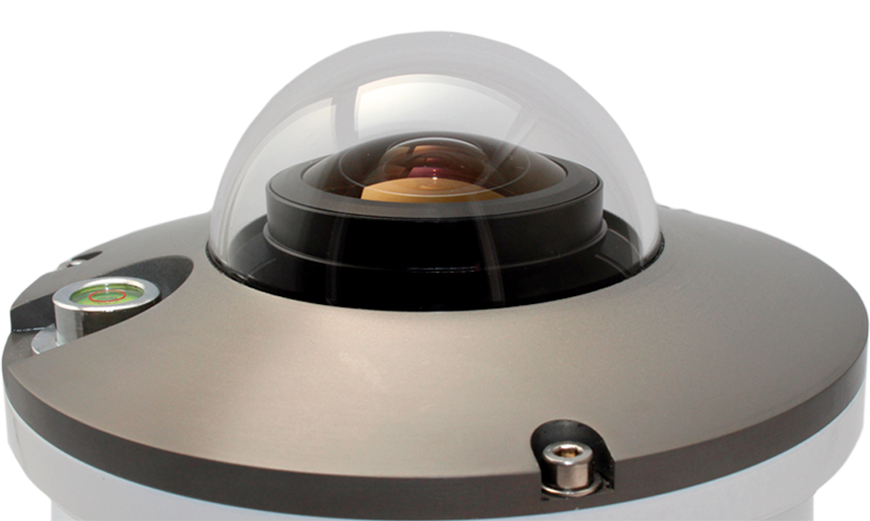

Housing window: borosilicate window 75mm diameter, 3mm thickness.

Housing: naodized aluminum/ powder coated paint
Operating temperature -40º to 55º (with extra internal heater)
Blower Optional
Dimensions 170mm height, 180 mm diameter
Weight 3 kgs (camera), 7.5 kgs (total packaged)
